产品说明
- 经热处理的316L不锈钢材质，热膨胀系数小
- 440C不锈钢球与蓝宝石垫片，耐磨且摩擦系数小
- 光学元件由卡环固定，M31x0.5螺孔，用于安装光学元件、透镜套筒或其它组件
- 安装直径30 mm的光学元件
LBTEK 30mm卡环固定不锈钢调整架用于安装直径30 mm的光学元件，可左、右手系安装，相比标准光学调整架具有长期对准稳定性优势。光学元件通过卡环固定，M31x0.5螺孔，可用于安装各类光学组件。每种调整架都附带不锈钢卡环，卡环也可以单独购买。M6×0.25的精密调节器可以为调整架提供±4°角度调节范围，调节方式水平调节，3轴带旋钮的调节器可选，每个调节器都带有锁定机构以保证角度调节后调整架的长期稳定性。
产品属性
表面处理喷砂
光学元件固定方式卡环固定
调节器规格M6×0.25
俯仰/偏摆角度±4°
30mm不锈钢镜架，3个调节器，M31x0.5螺纹，卡环固定
- 用于安装直径30 mm的光学元件
- 3个精密调节器，带旋钮
- 可调节角度±4°
- 调节精度：0.4°/转

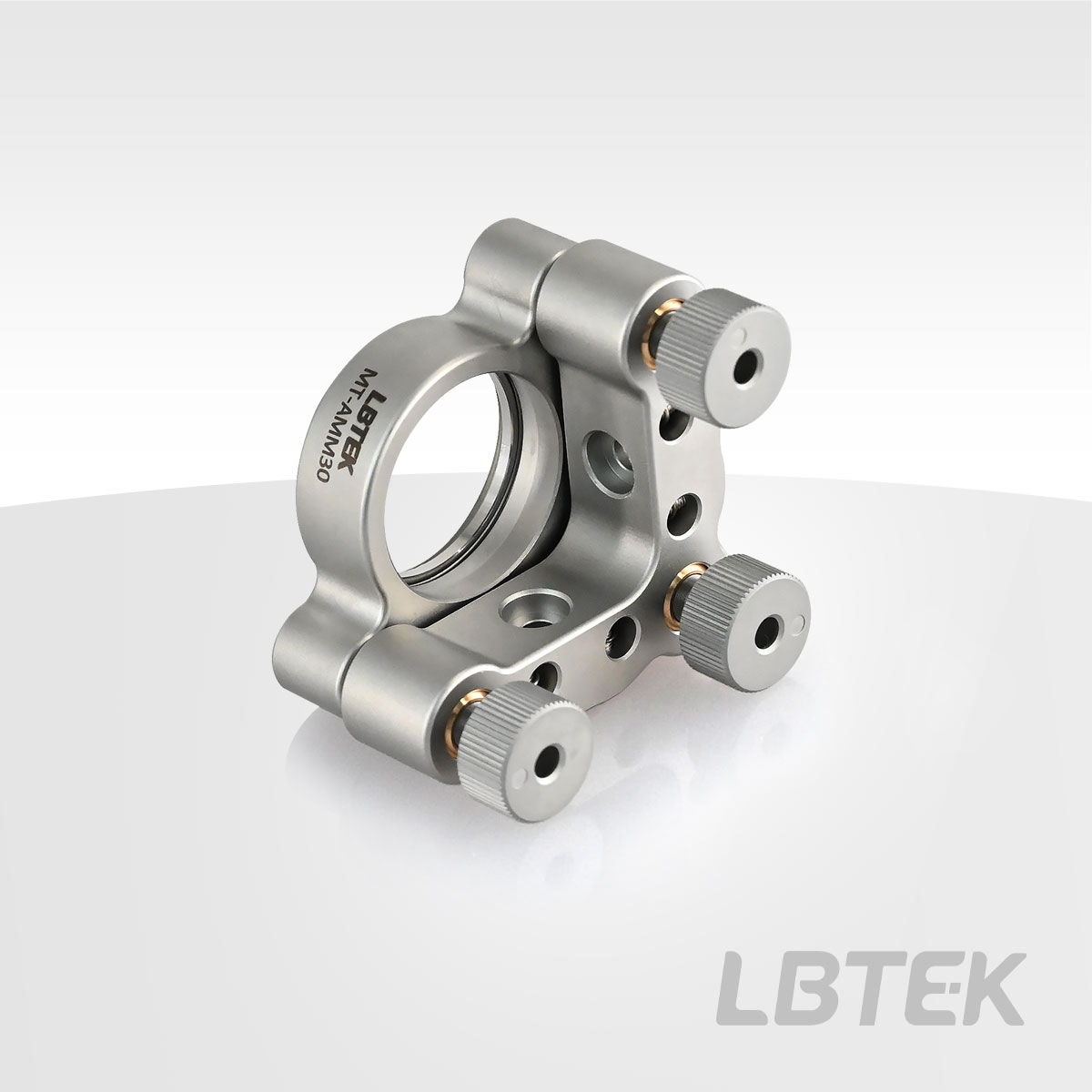

LBTEK 30 mm不锈钢镜架，用于安装直径30 mm的光学元件，光学元件通过卡环固定，购买镜架时附送1个不锈钢卡环，且卡环固定式光学元件最厚不超过7mm，3个M6×0.25精密调节器可以为调整架提供±4°的角度调节范围，带旋钮，带旋钮可通过手拧或六角扳手调节，光学调整架侧面有M4沉头安装孔。购买时附送2个M4内六角薄头螺丝以及2.0mm六角扳手一个。

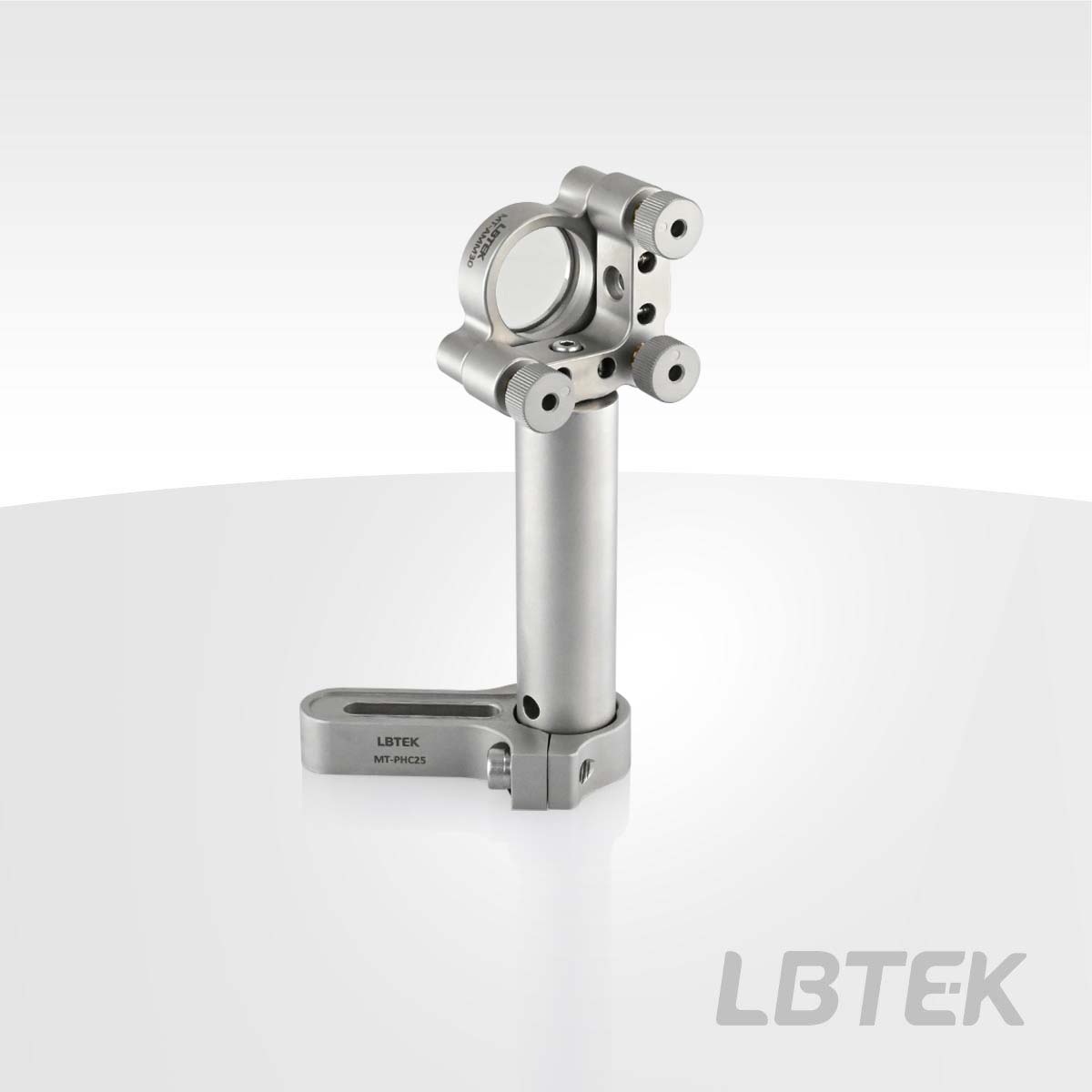

应用示例
产品型号 | 适用光学元件直径 | 光轴中心高度 | 调节器规格/数量 | 文件 | 单价 | 对比 | 发货日期 | ||
|---|---|---|---|---|---|---|---|---|---|
 | MT-AMM30 新品 | Ø30 mm | 25.4 mm | 带滚花旋钮M6×0.25精密调节器/3个 | ¥2,666.00 | 当天 | 加入购物车 |
